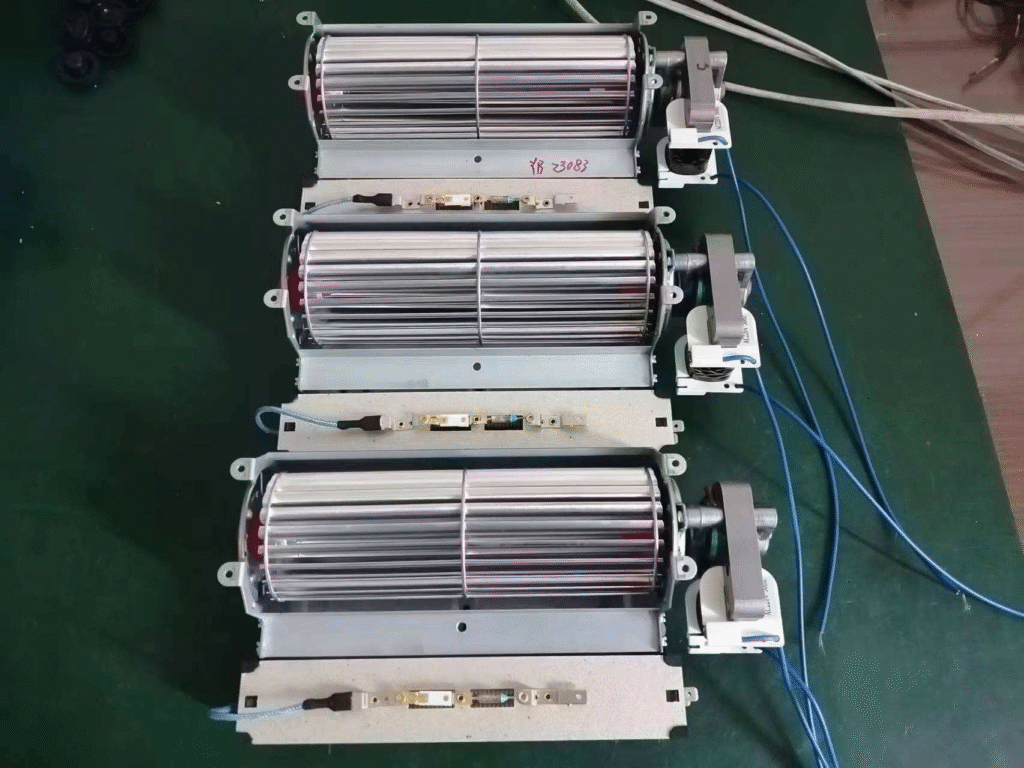

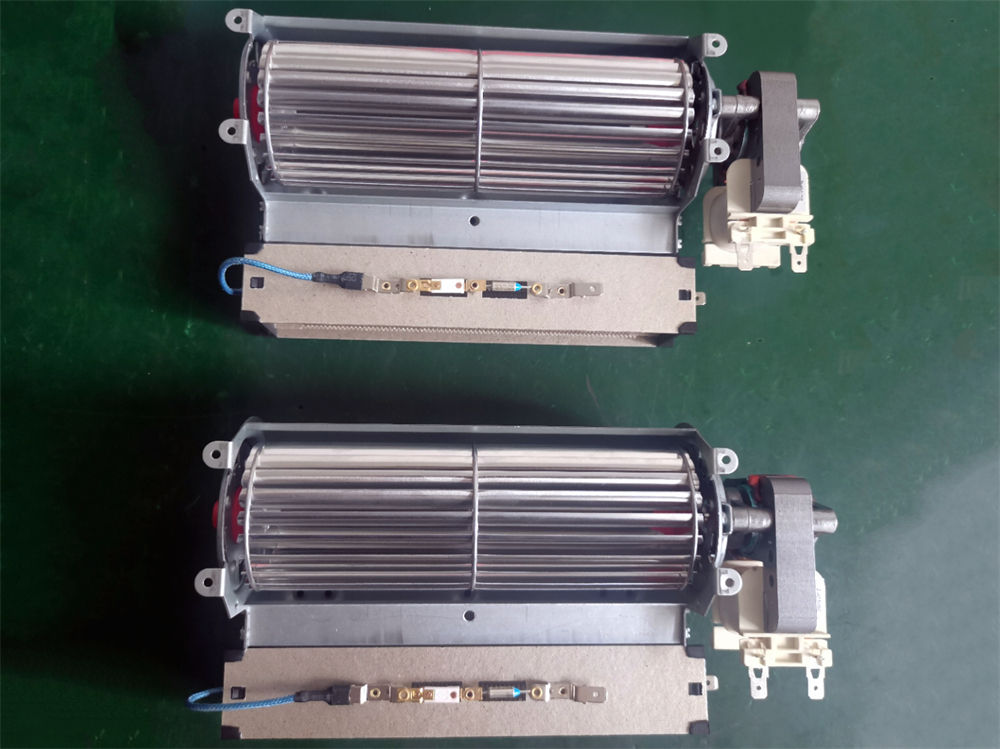

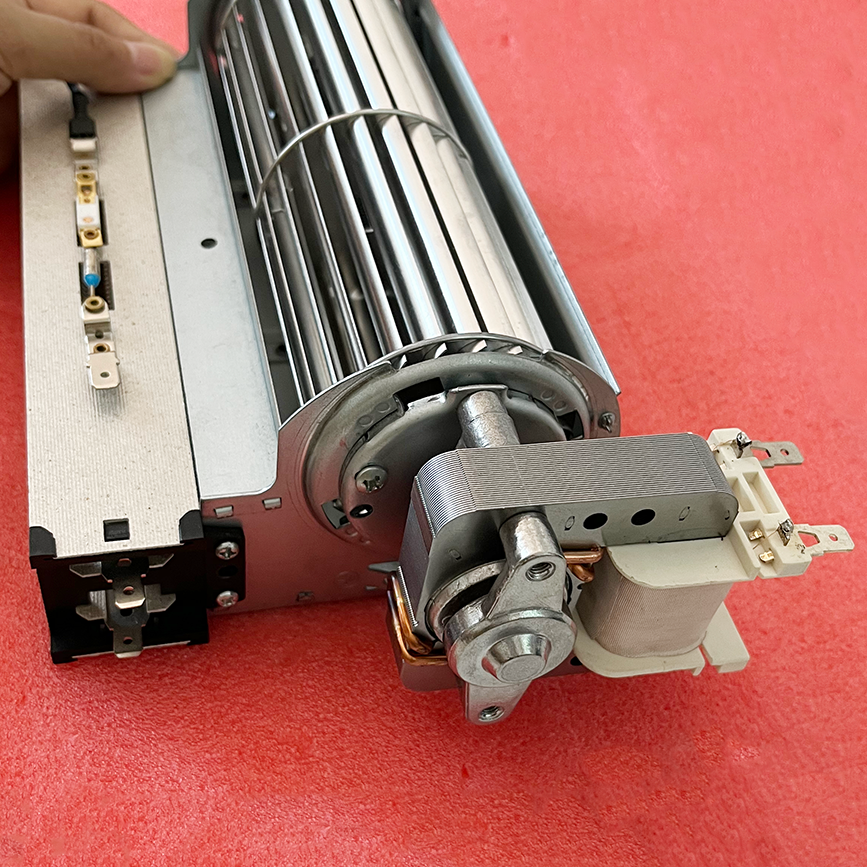

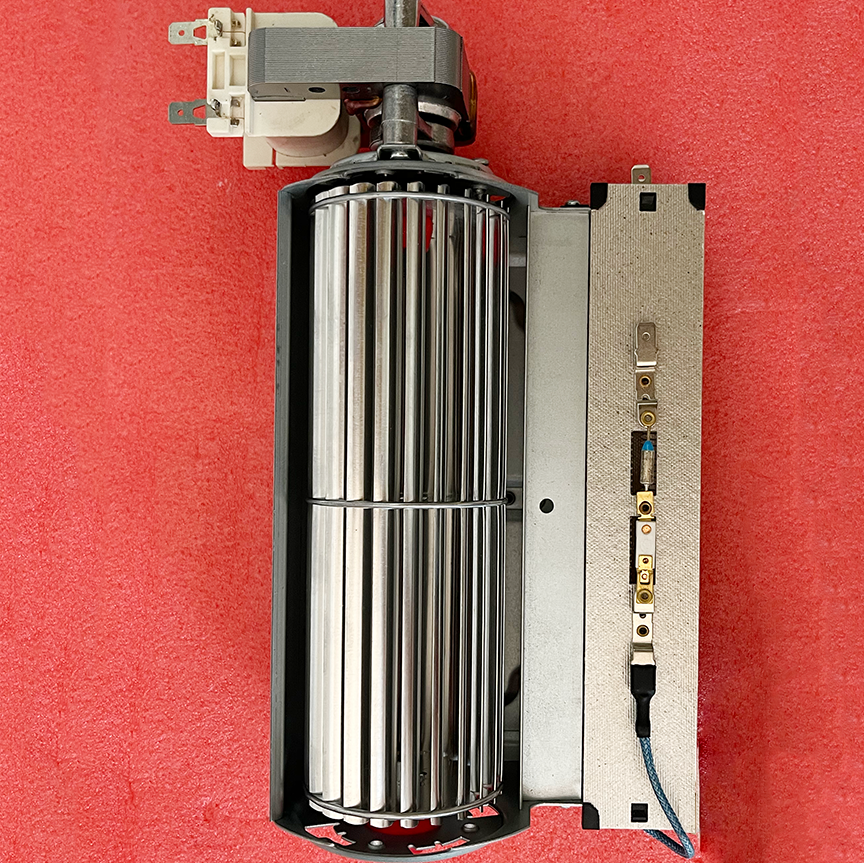

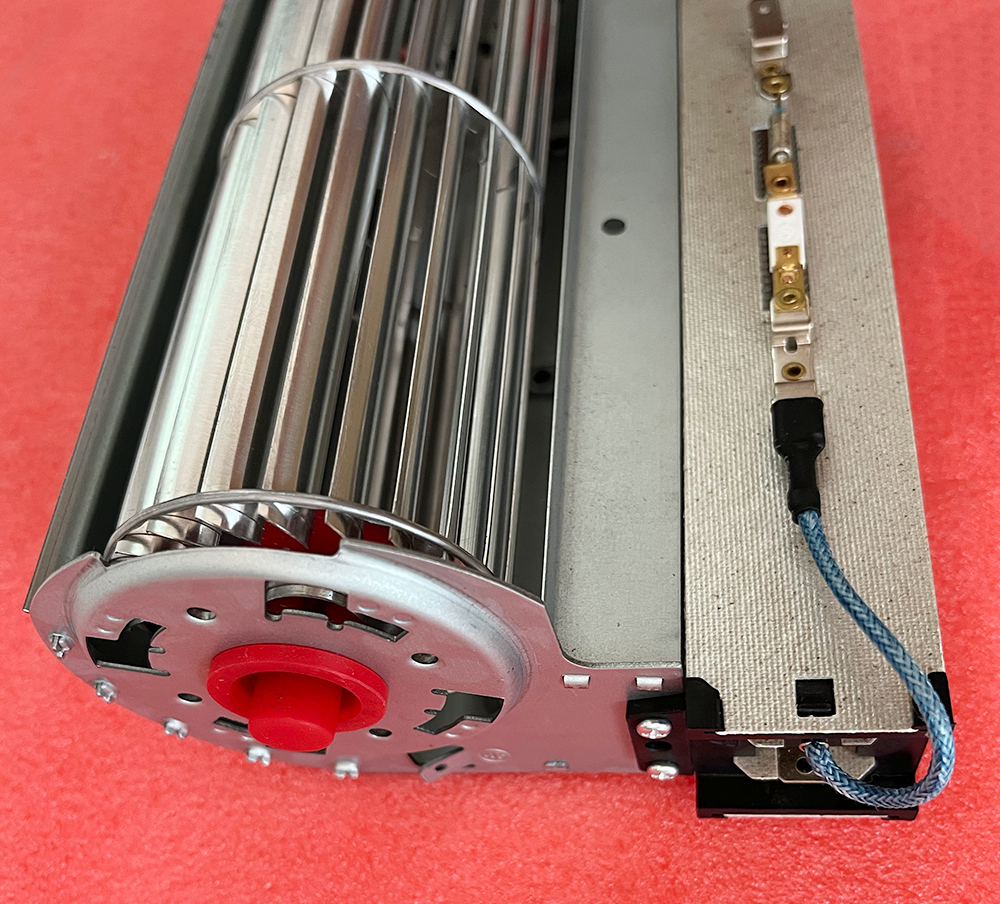

AC60180-1000w heater with a thermostat and fuse
| Fan Model number | Name and dimension (mm) | Voltage (V) | Speed (rpm) | Bearing | Lead wire |
| DID60180TB22 | 260x95x82 mm cross flow fan | 220VAC | 2300±10% | 2 Ball | two wire |
| Fan type | AC Cross flow fan with heater | ||||
| Frame Impeller | Metal material | ||||
| Voltage | 110/220/380 v AC | ||||
| Bearing | Ball Bearing system | ||||
| Motor | AC MOTOR | ||||
| Speed | customize | ||||
| Power consumption | customize | ||||
| Impeller diameter | 40/48/50/60/65mm | ||||
| Outlet length | 185mm~500mm | ||||
| Insulation class | H | ||||

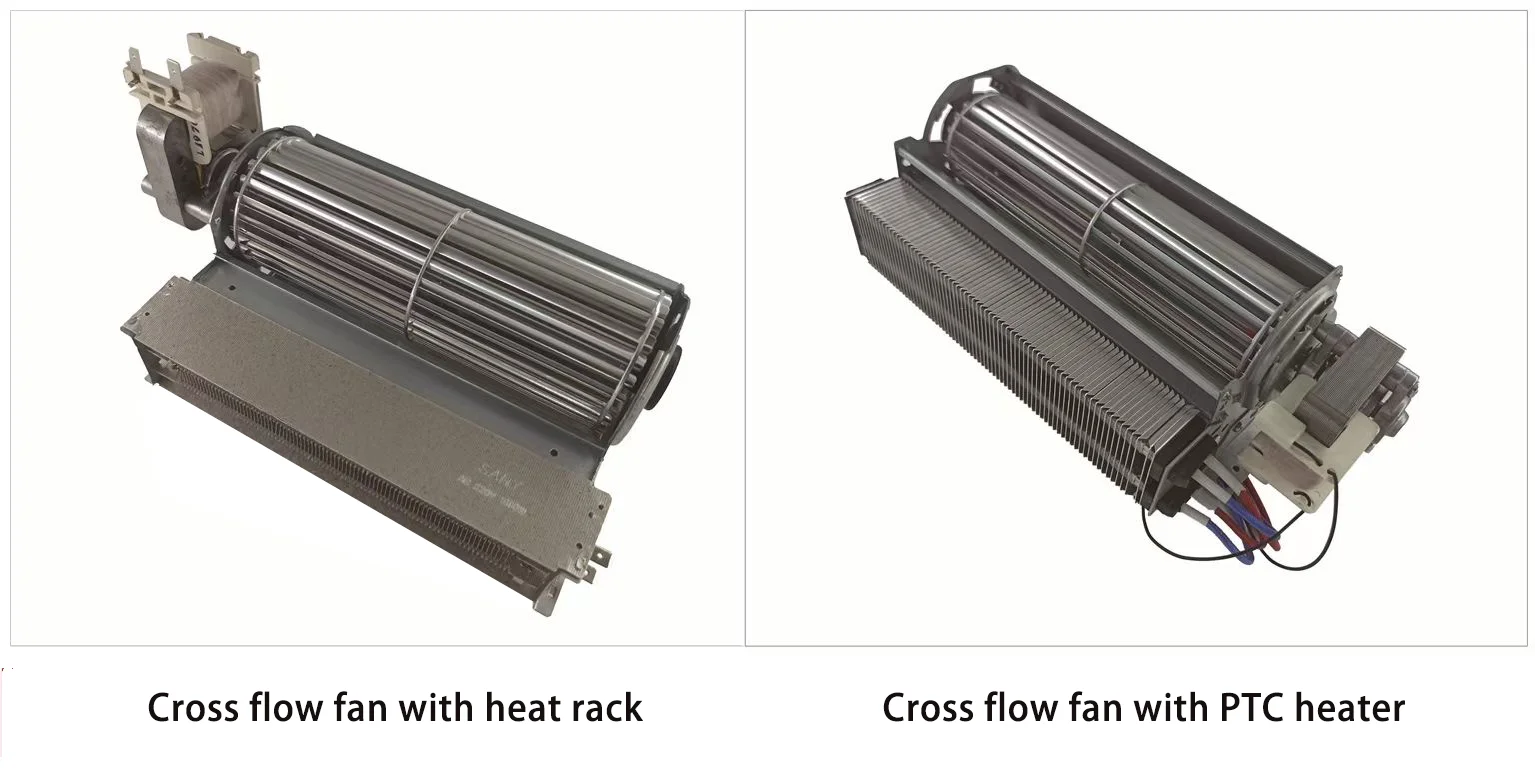

Total have two types, One is cross flow fan with PTC heater, Another is cross flow fan with heat rack wire.

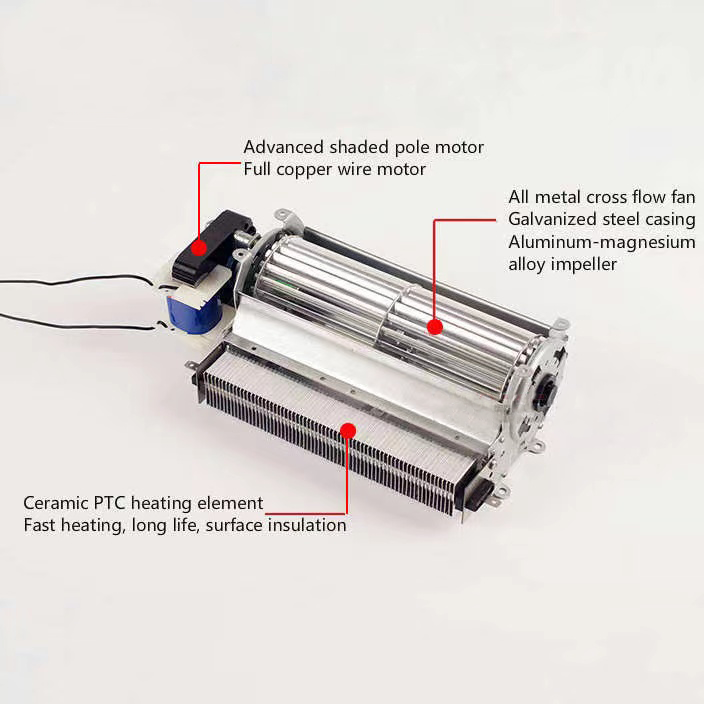

PTC heating body is also called PTC heater, which is composed of PTC ceramic heating element and aluminum tube. This type of PTC heating body has the advantages of small thermal resistance and high heat exchange efficiency. It is an electric heater with automatic constant temperature and energy saving. The outstanding feature is the safety performance, any application will not produce such as the electric heat pipe heater surface “redness” phenomenon, resulting in scald, fire and other safety hazards.

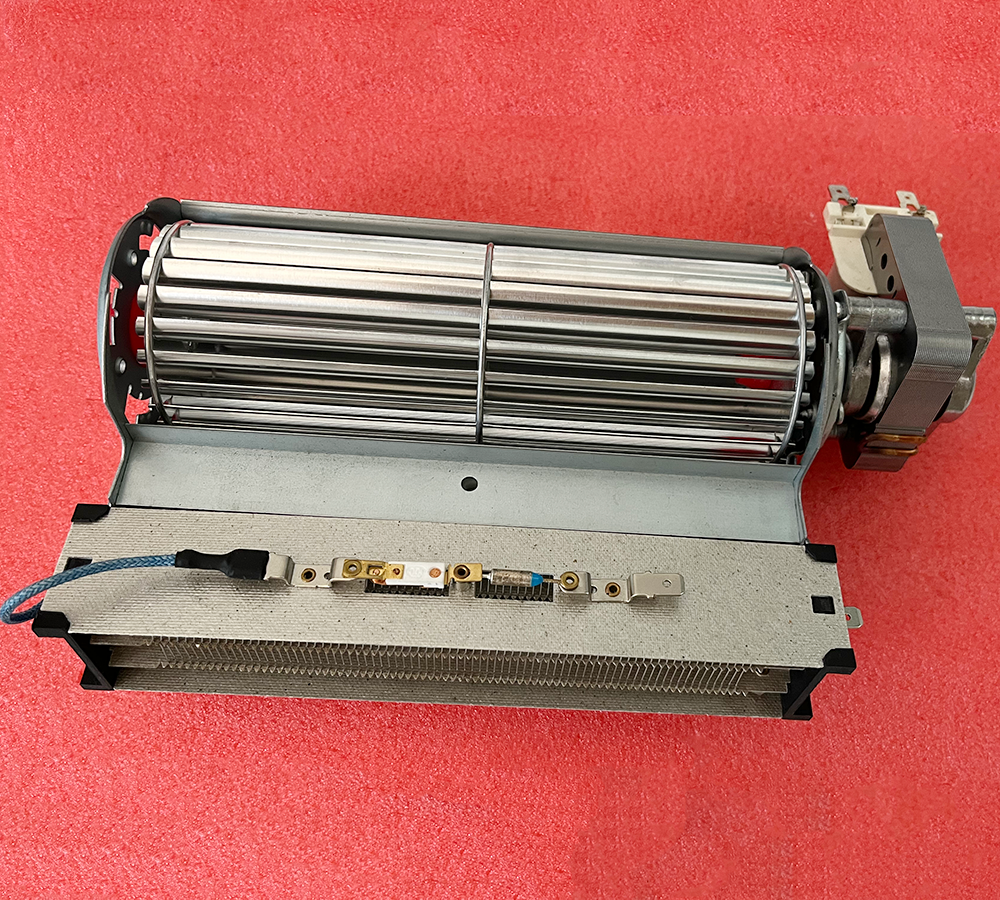

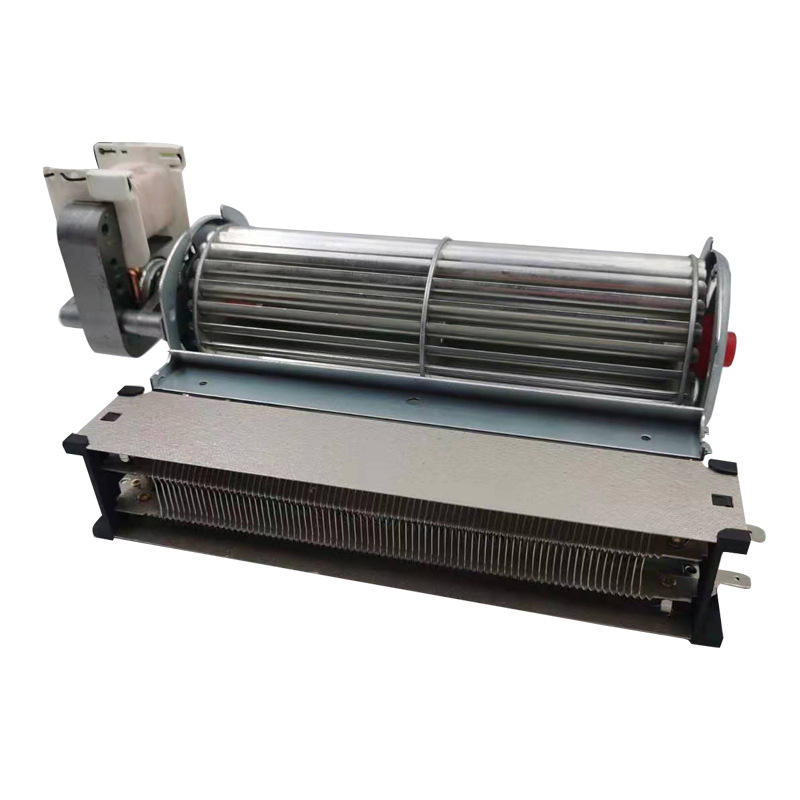

The life expectancy of the electric heating rack wire is short, the overheating is easy to burn the electric heating wire, and the instant current of the boot is large; But it’s cheaper, and it cools fast.
