DID12042CB
- Model number: DID20060AB
- Size: 200x200x60mm
- Type: Ball Bearing
- Leaf material: PBT
- Rated voltage: 12V,24V,48V
- Rated power: 24.0~60.0W
- Speed: 2000~3000RPM
- Air volume: 373.0~559.0CFM
- Noise level: 53.0~65.0dB-A
- Life: 30000~50000hrs
- Weight: 920.0g
- Certification: UL,TUV,RoHS,CE

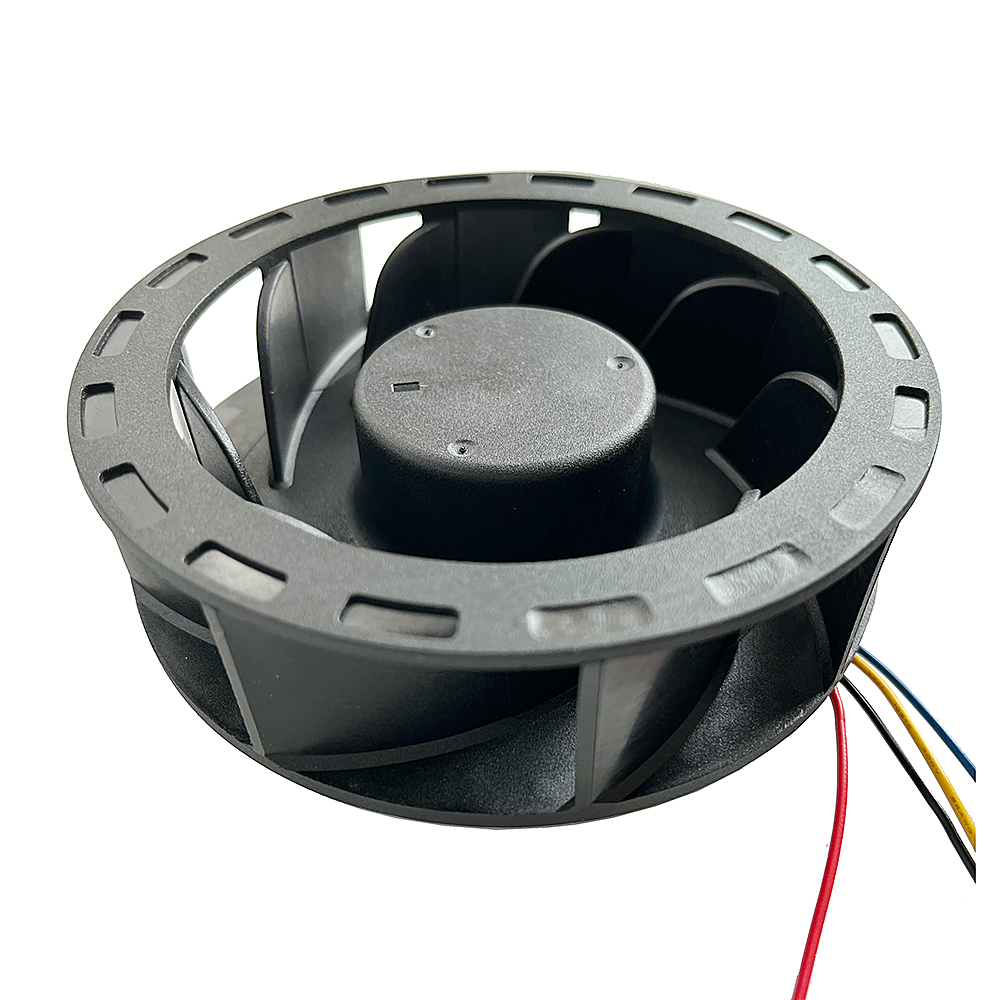

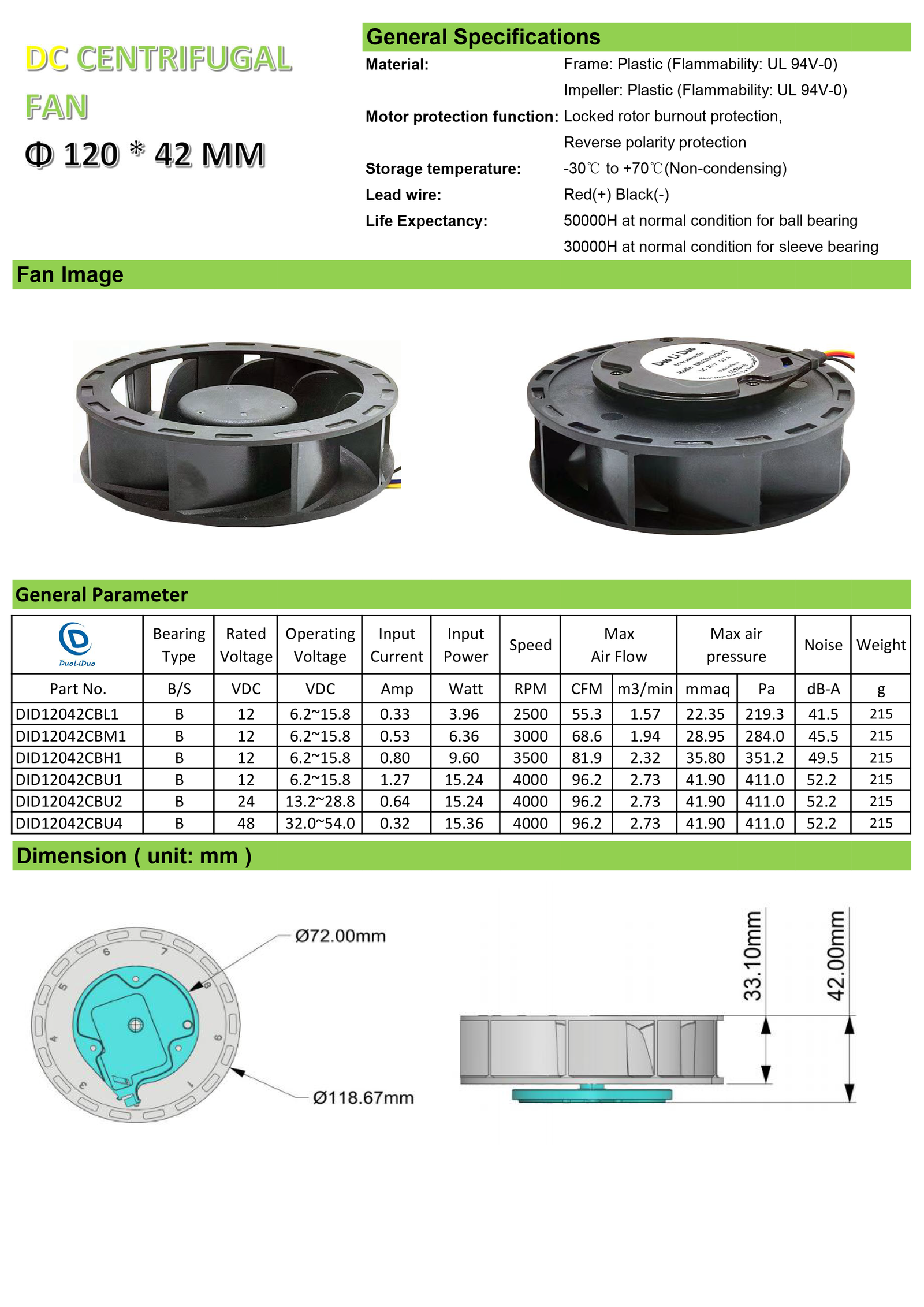

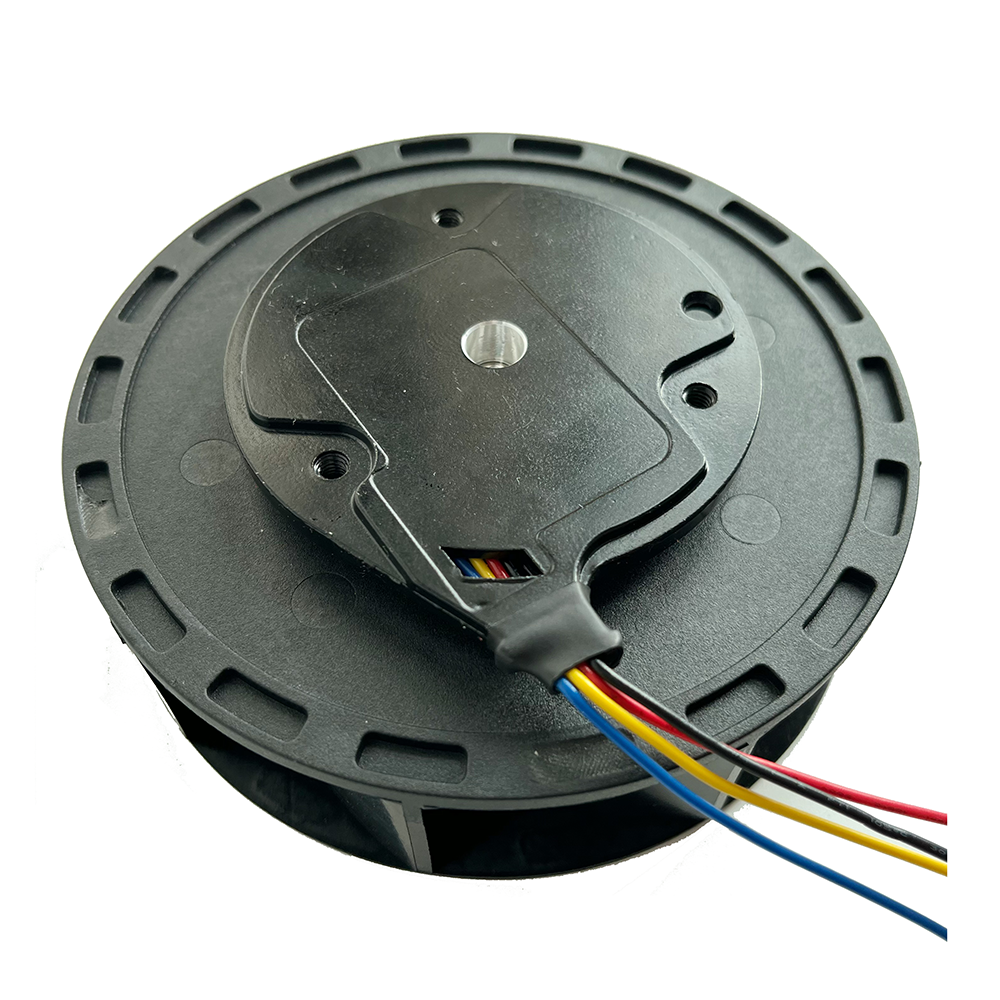

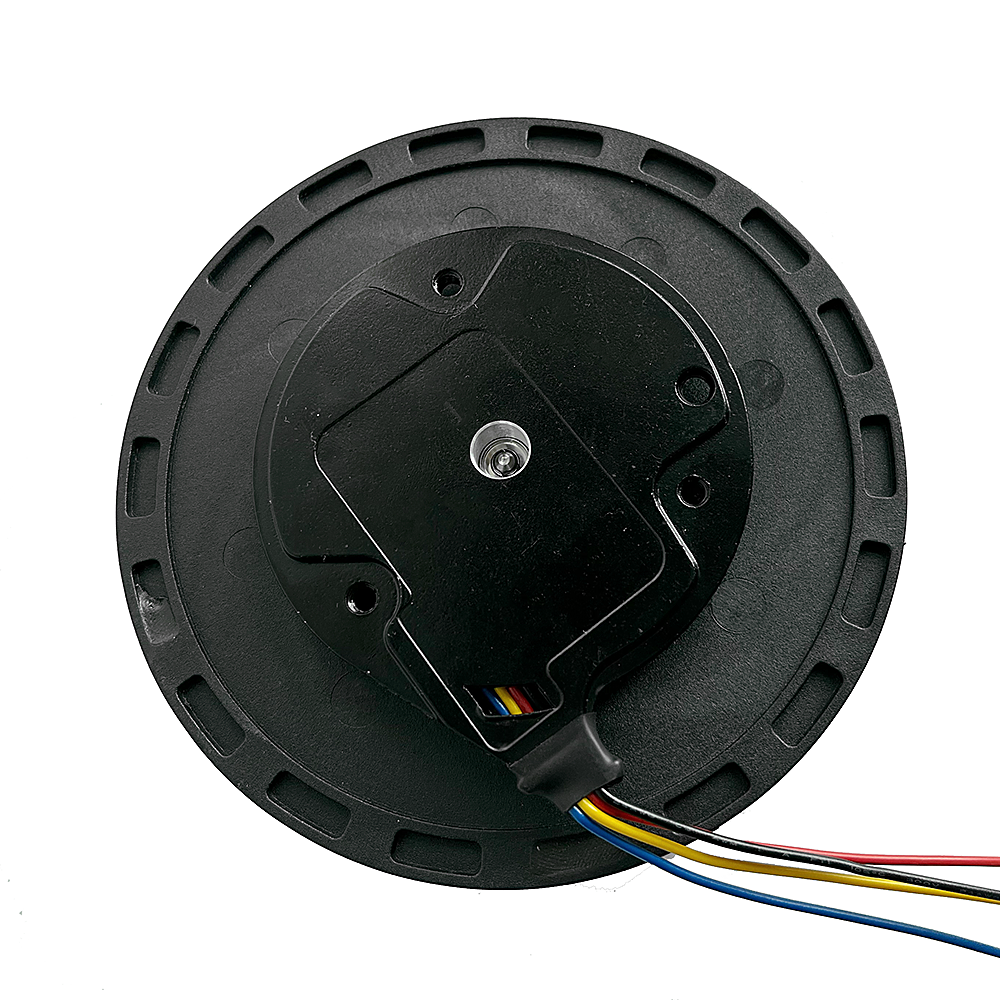

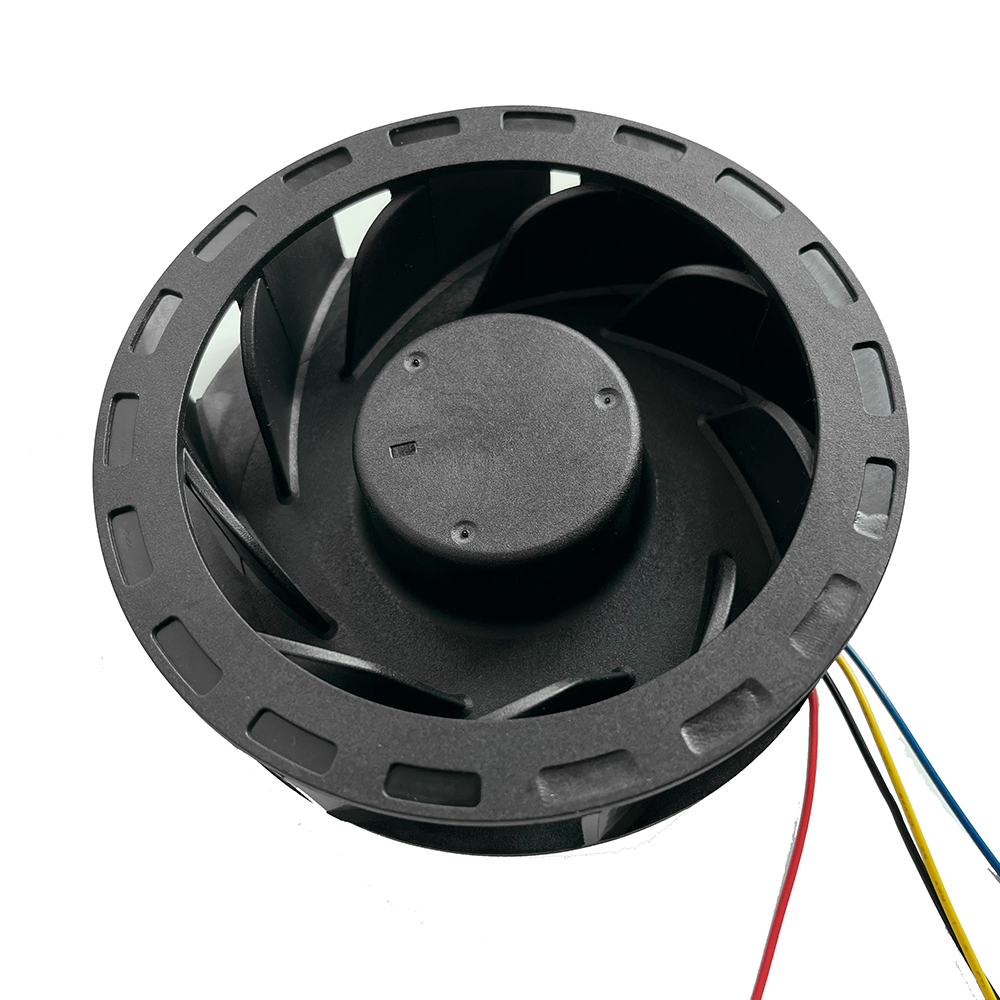

| Fan name | 5inch Dc Centrifugal Fan Series 120 mm |
| Size | 120 x 42 mm 5 inch diameter |
| Shape | Round |
| Rated voltage | dc 12v / 24v / 48v |
| Speed | 2500rpm-4000rpm |
| Rated Current | 1.27 A |
| Max.air flow rate | 163.8M3/H 96.2CFM |
| Max.air flow rate | 411 Pa |
| Fan feature | Low noise, Low vibration, compact size, High stable perfermance, Good balance, Muti-application |
| Noise level | 55.5 dB |
| Warranty | 1 year |
| Certification | CE ROHS |
| Application | Ventilation System, air refresher machine, Industry Air purfier, air Vacuum Cooler, Pet air dryer, Heat exchanger, Cooling system |
| Muti Protection | (Reverse connection protection) (Blocking protection) (Automatic restart) (Current limiting protection) (Overvoltage protection) (Undervoltage protection) |
Low Noise 4Inch High CFM Dust Collector Centrifugal Fan DC 12V 24V 48V Air Filter 120 X 42 mm
120mm Brushless Motor 12v Non-librations Insert Centrifugal Fan for Dust Filter, Dust Collector
Low Noise 120mm Carbon Filter Centrifugal Fan 12025 12v Pwm Speed Control Dc air Cooler for Household Application
High Quality 5” 120 MM Super Silent 97CFM DC 24V Small High Pressure Centrifugal Fan for Air Vacuum Cleaner, Car Purifier
Low Noise Air Circulation Dryer Fan 5INCH Centrifugal Fan 12V 24V 48V 120 X 42 mm Cooling Fan for Air Purifier
Silent Fan 120 X 33 mm Micro Centrifugal Fan 25 w Dc Centrifugal Fan Plastic for air Purification, Commercial Scent Machine
